The GoLand Eino visual orchestration plugin lets you compose Graphs by dragging components and generates code. Import/export are supported.

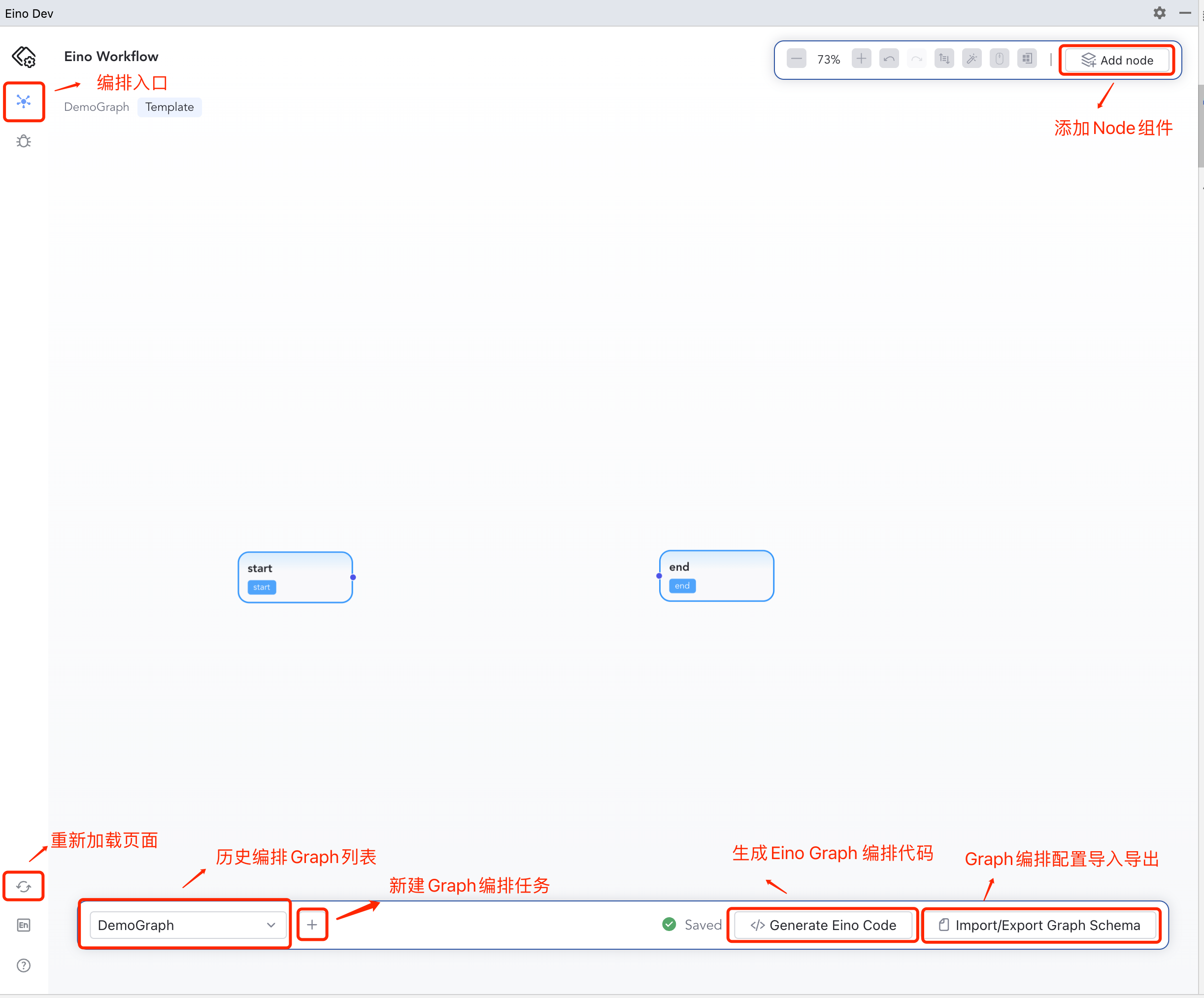

First Look
Orchestration Concepts
Graph
Matches Eino’s Graph concept. Add a Graph from the plugin UI.

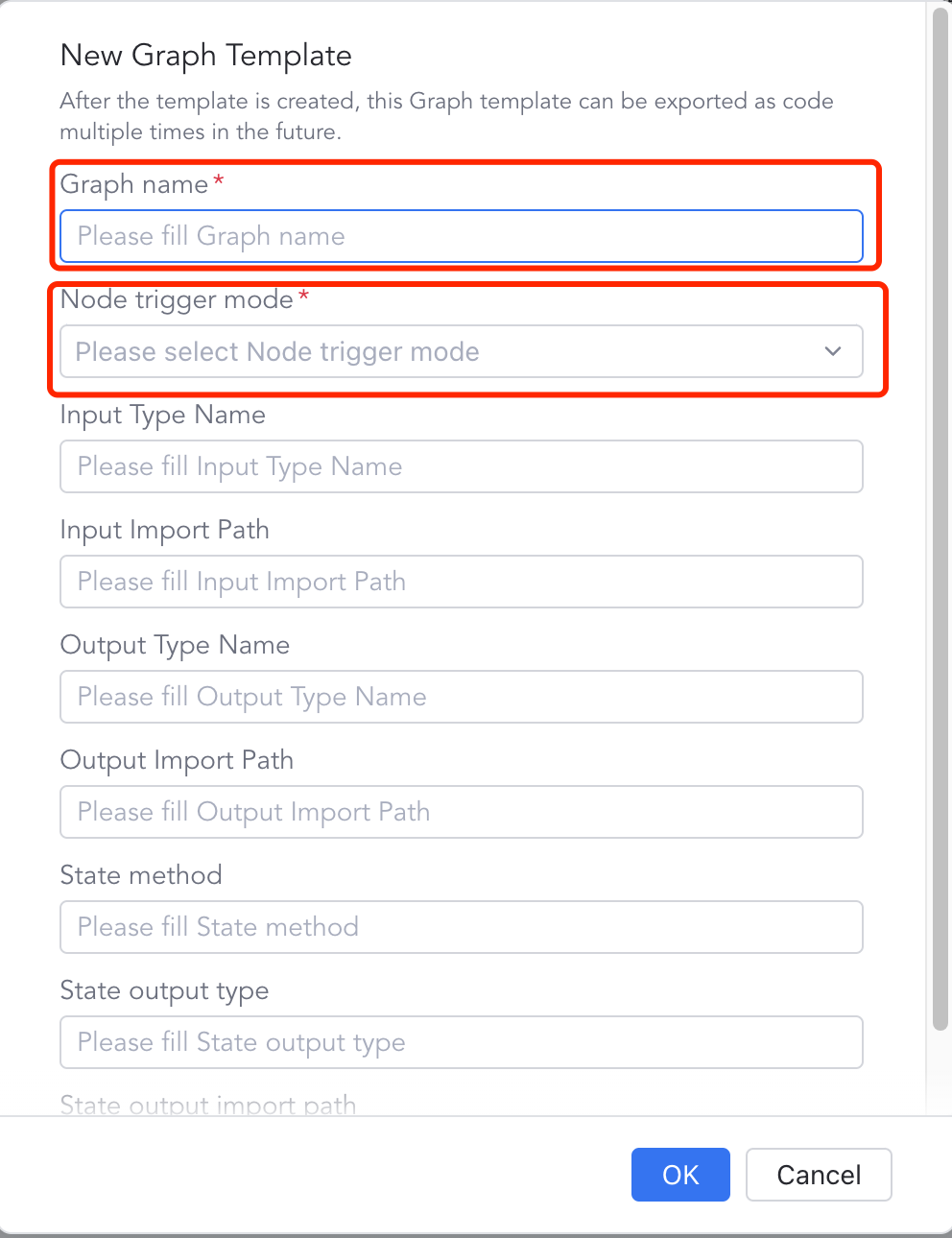

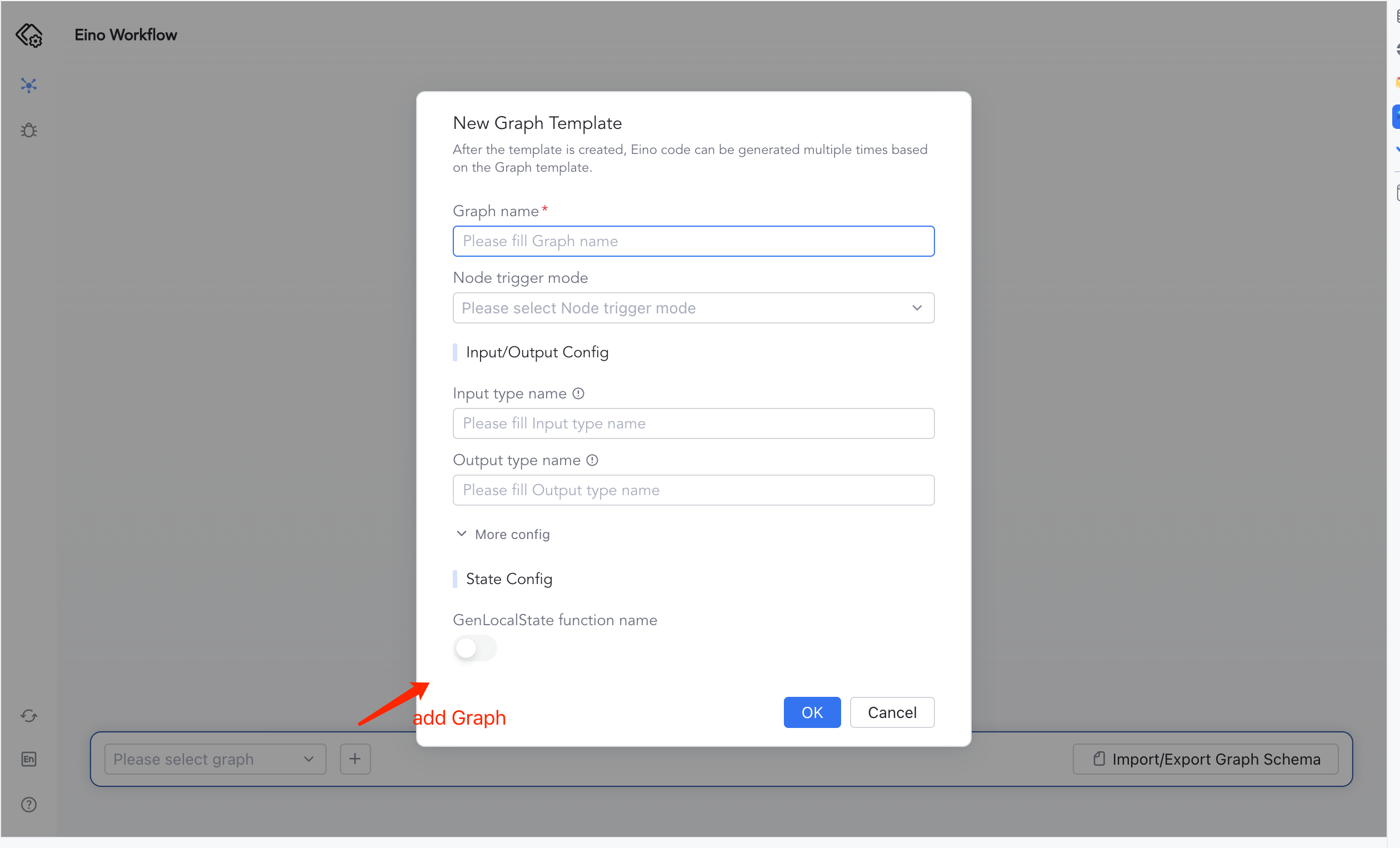

Fill the creation dialog to generate a Graph object.
Node

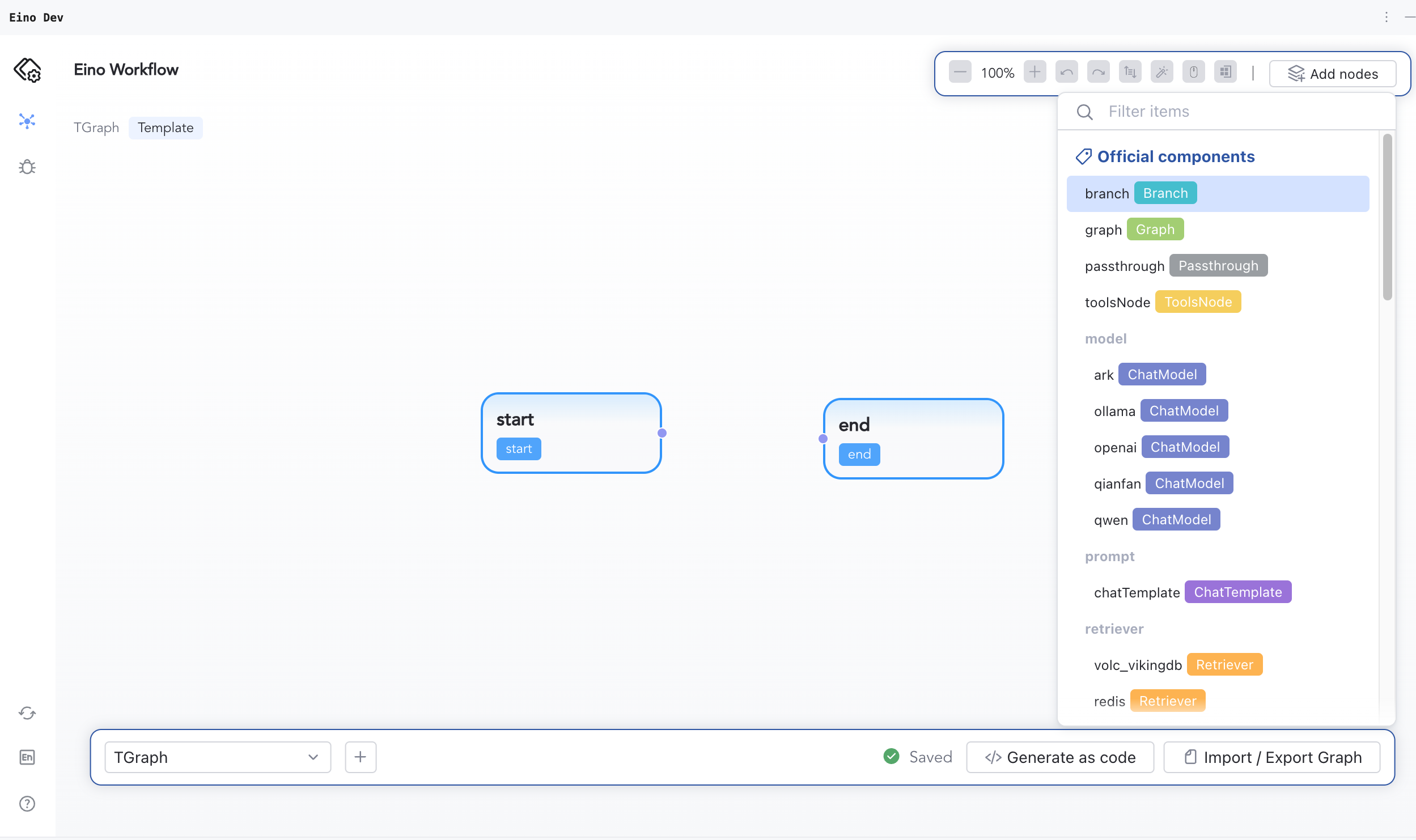

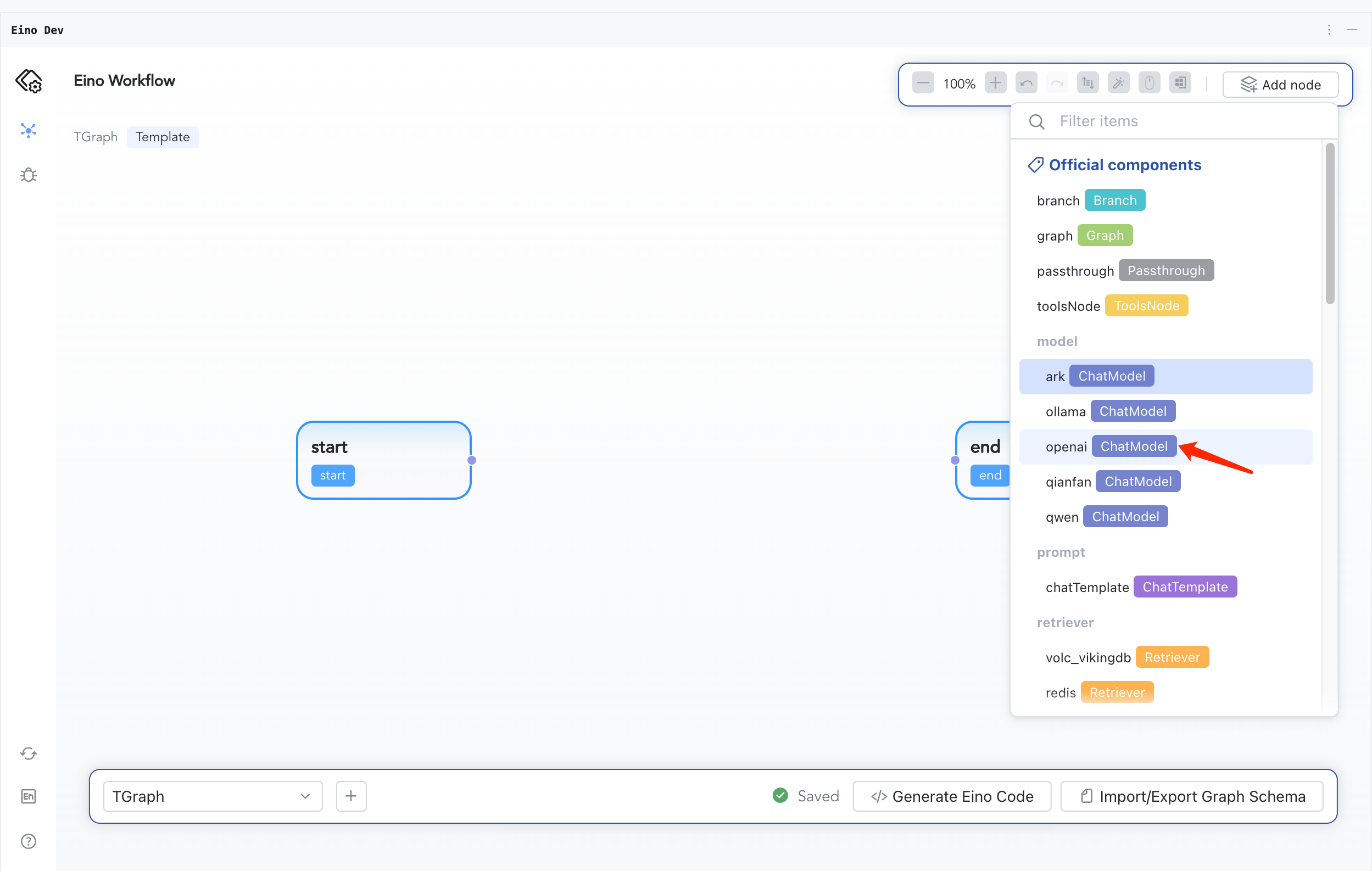

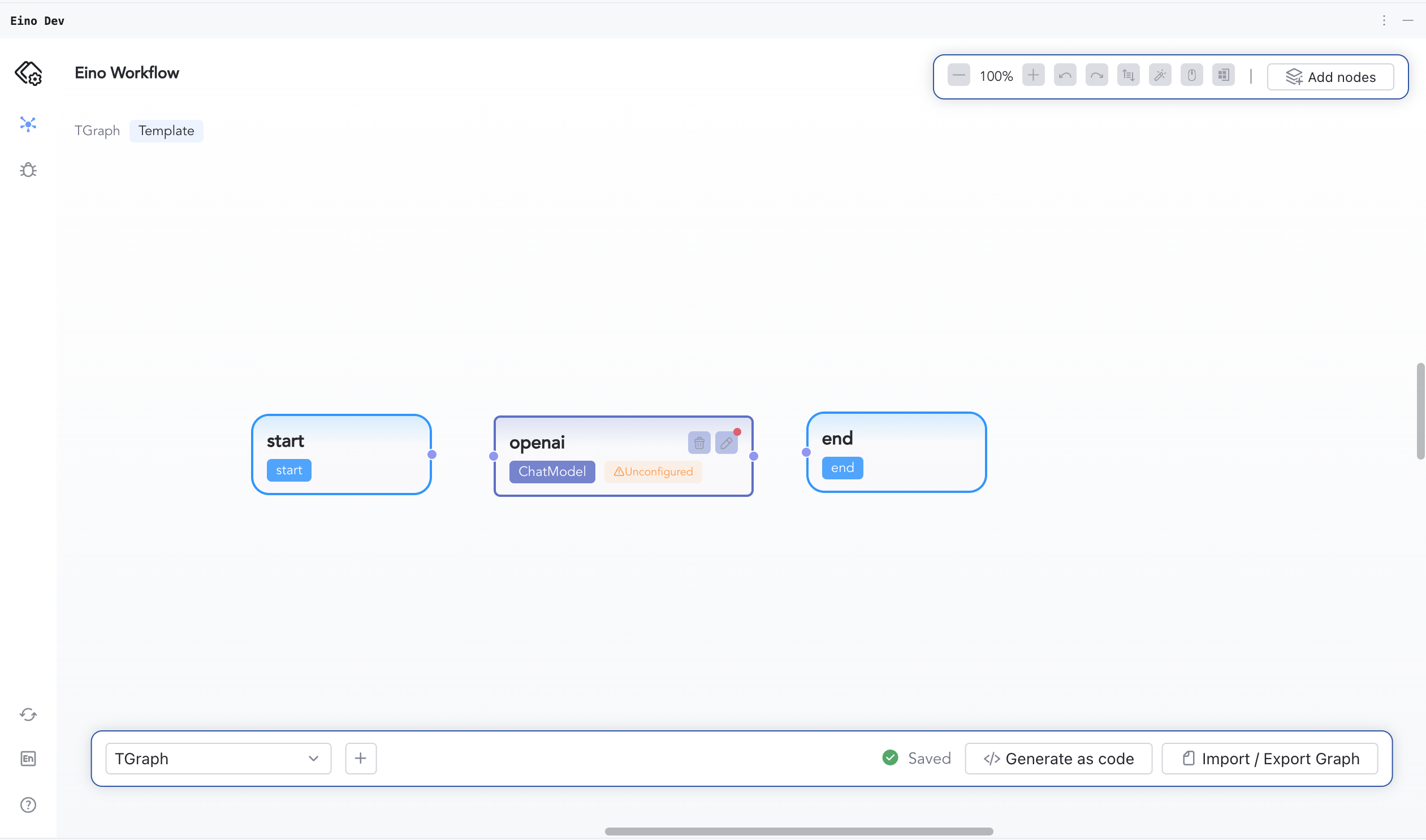

Matches Eino’s Node concept. After creating a Graph, click “AddNodes” to add different node types onto the canvas.

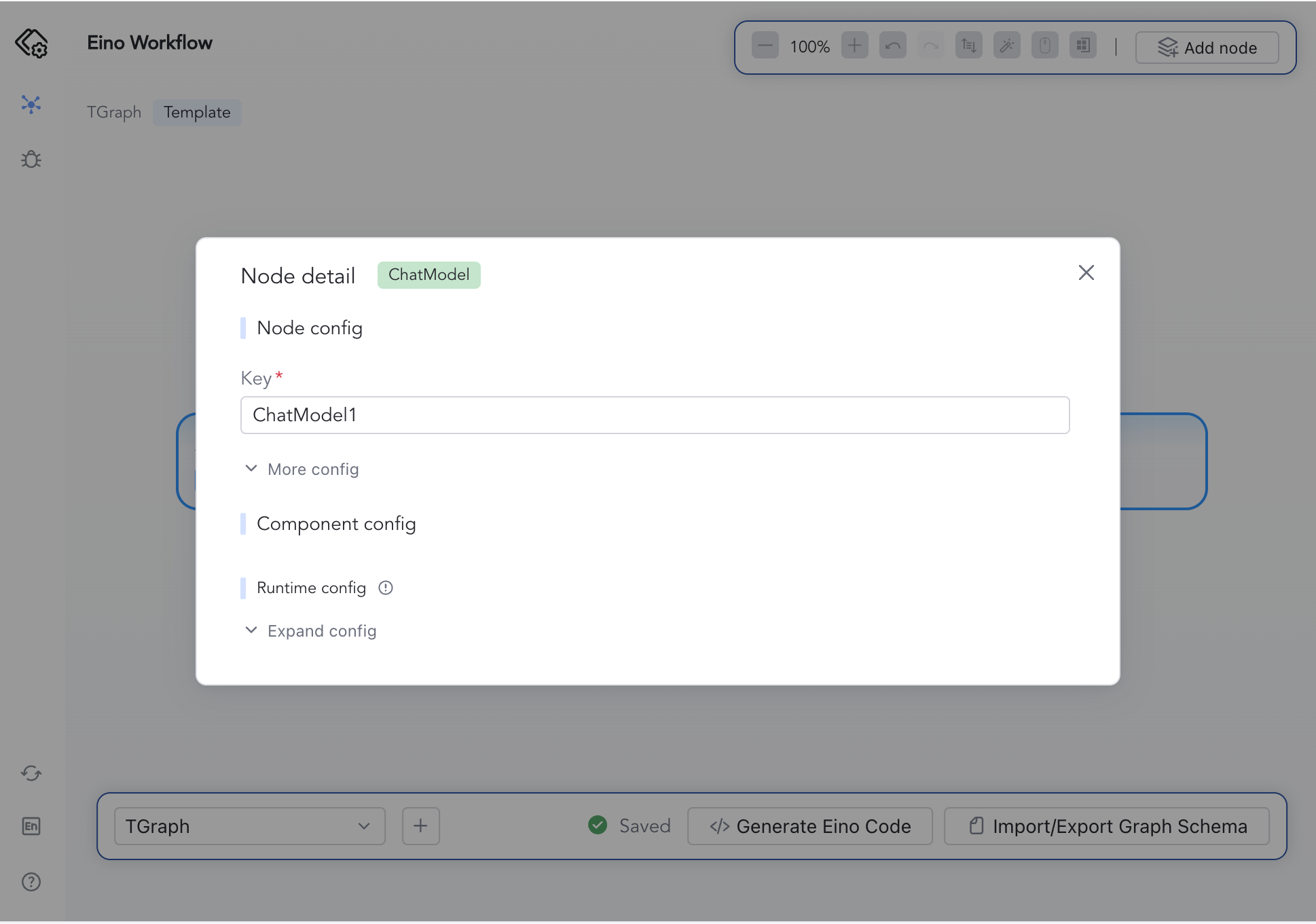

Node keys are auto-filled; expand “More config” for optional settings.
Component
Components define node behavior. Official components and custom components are supported.

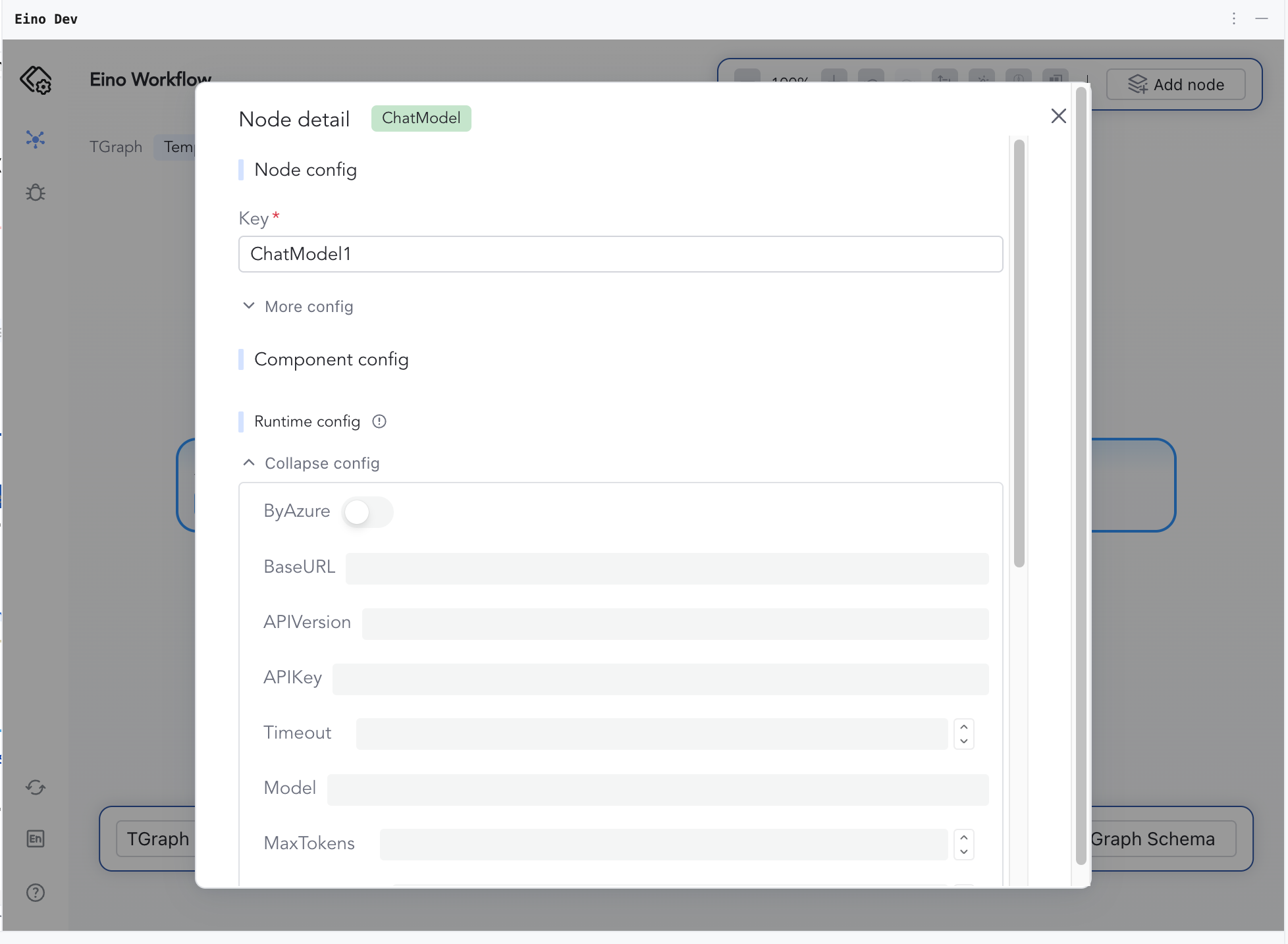

Configure runtime settings after adding a node.
Slot

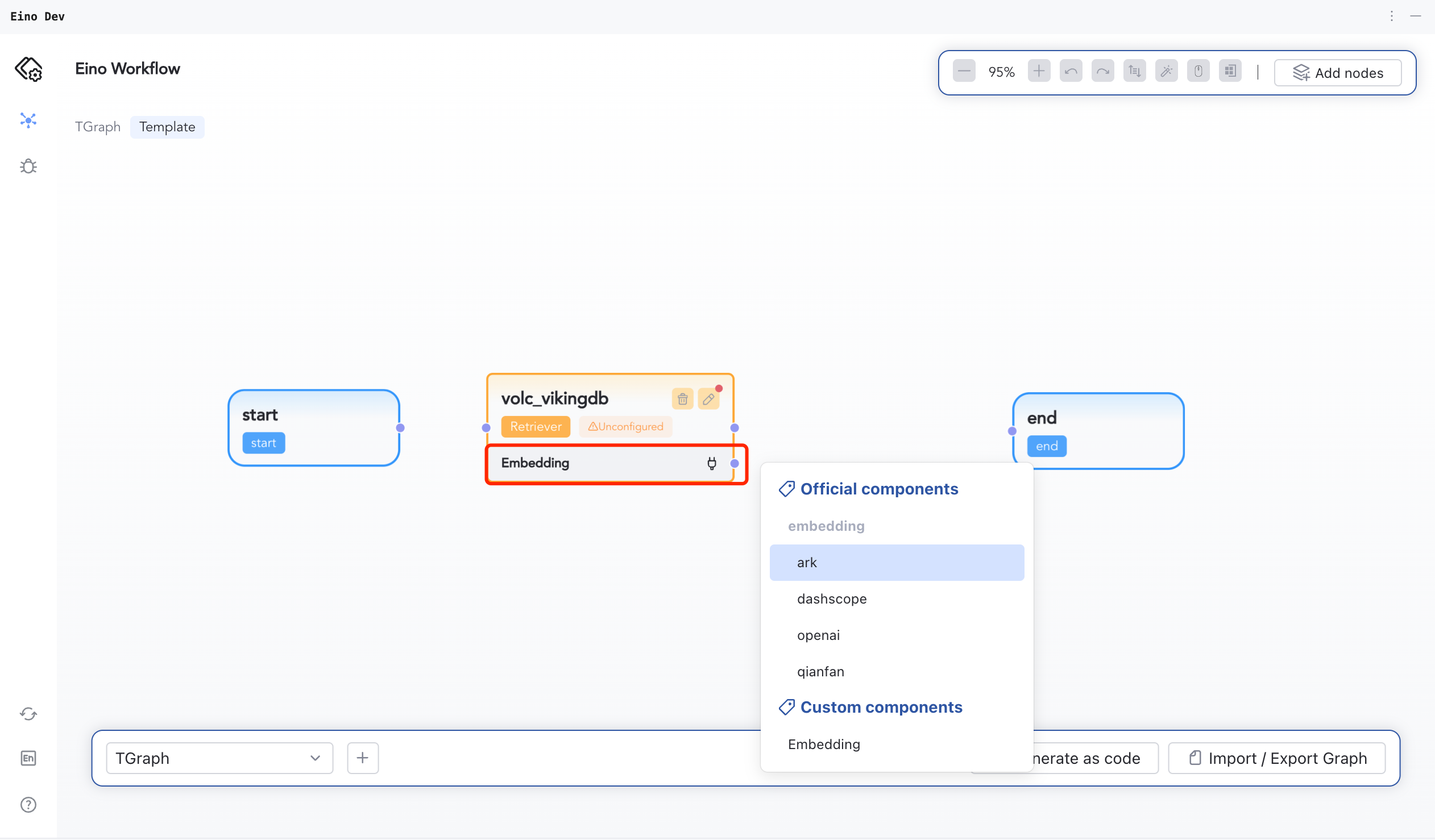

Some components depend on other components — these dependencies are called slots.
For example, volc_vikingDB depends on an Embedding component; ToolsNode depends on multiple Tool components.
Start Orchestrating
Initialize the Plugin

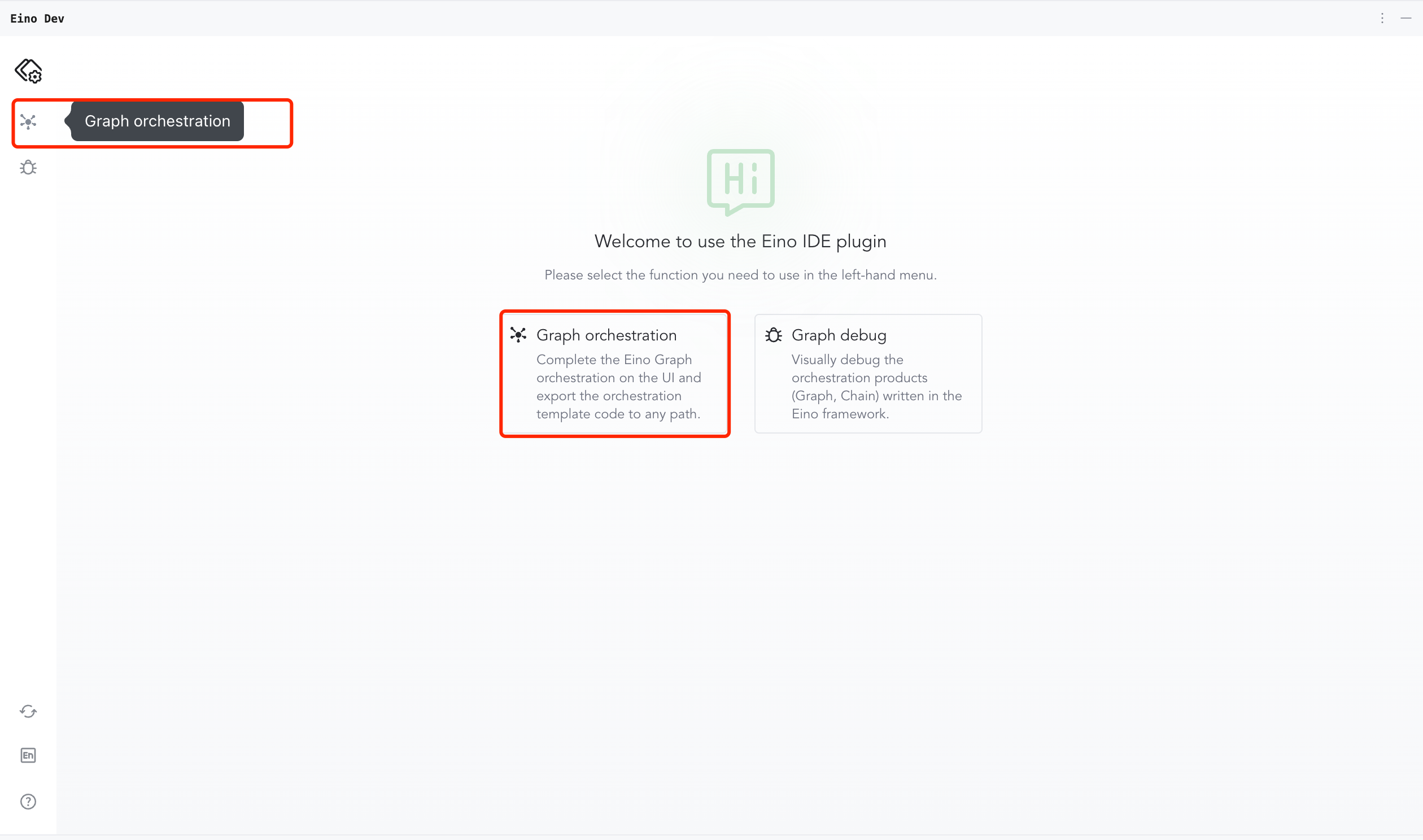

Open Eino Dev and click into orchestration.
Create and Orchestrate a Graph

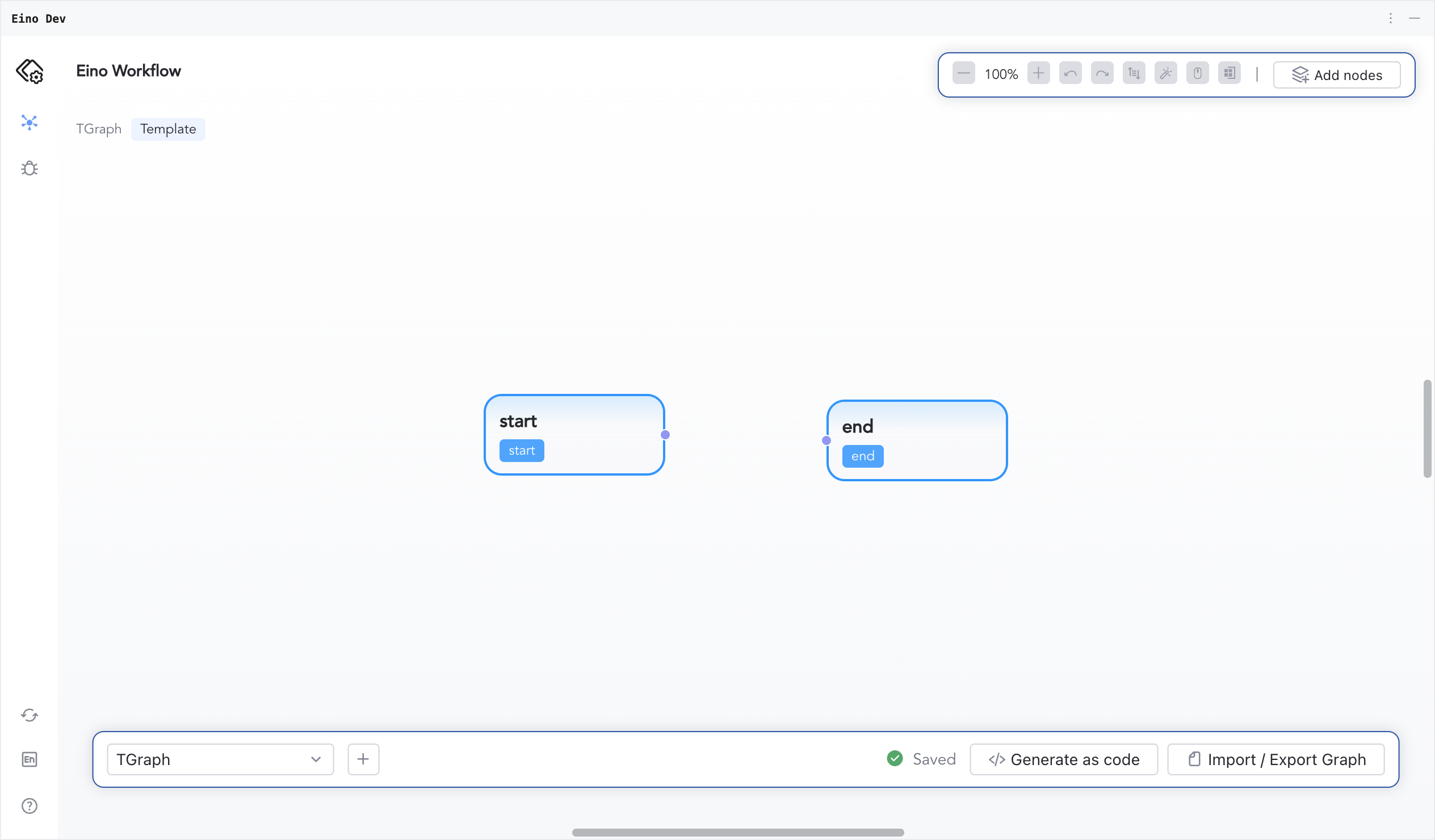

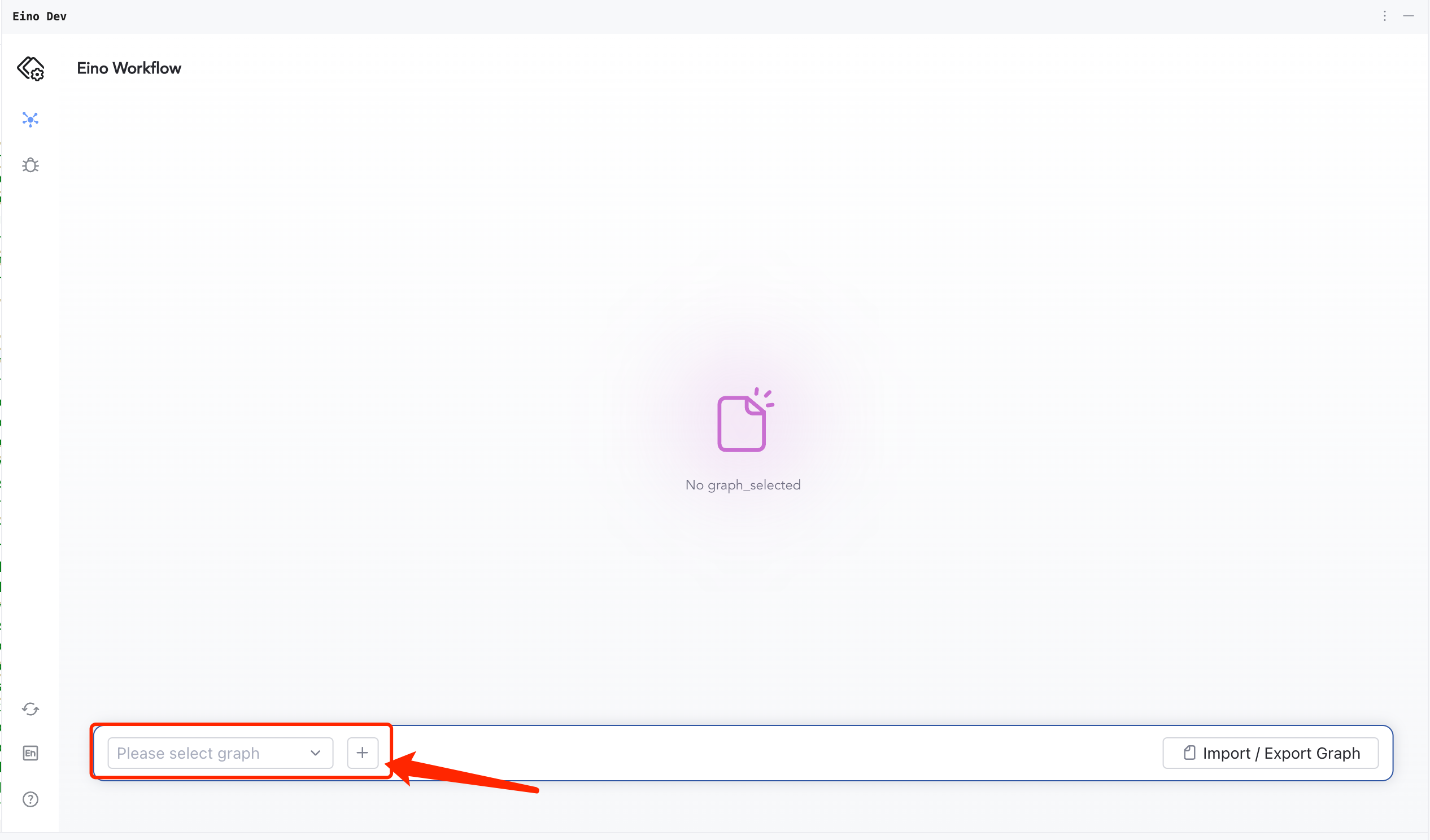

Add a Graph via the bottom-left control; fill the dialog to create the canvas.

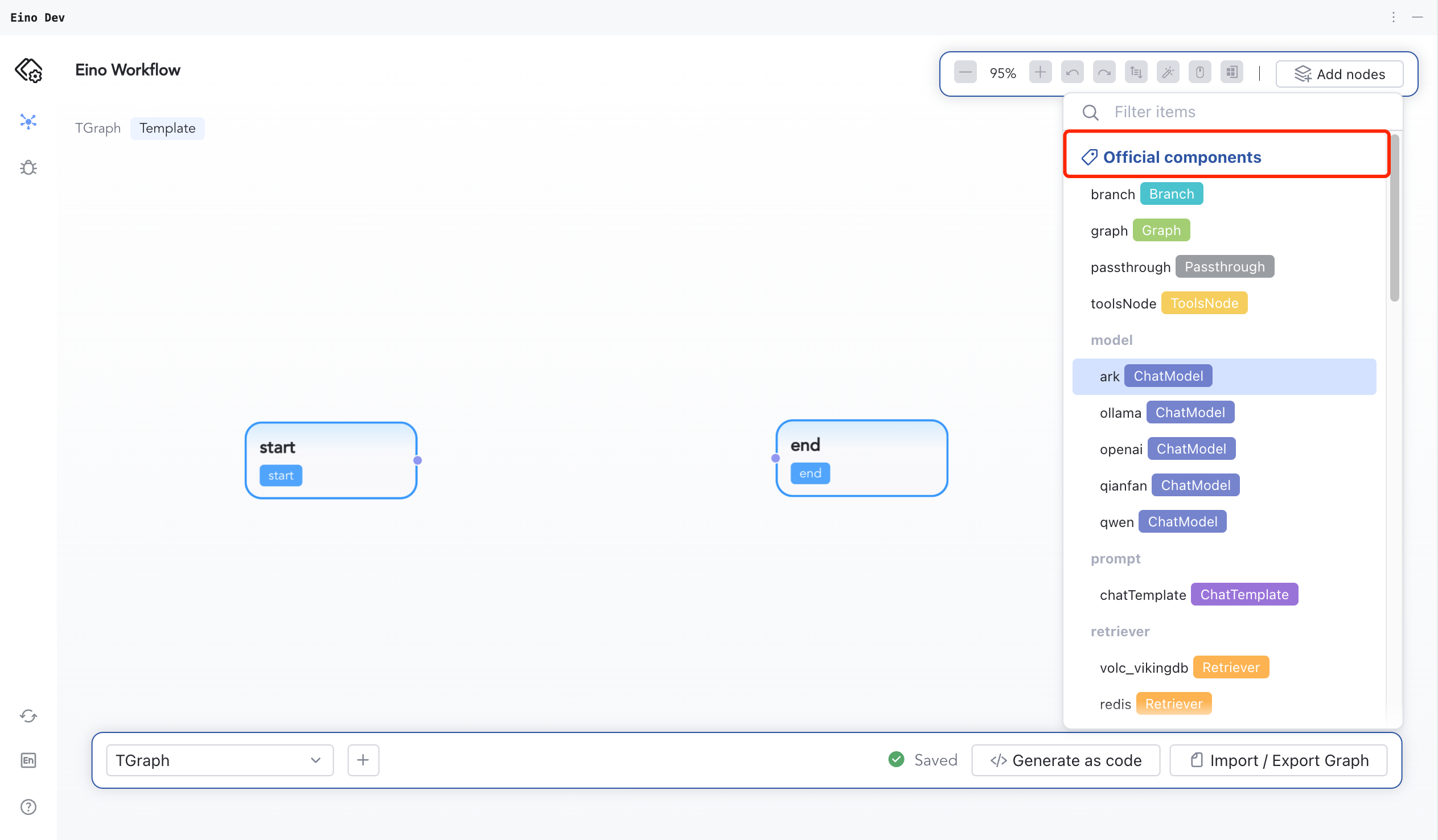

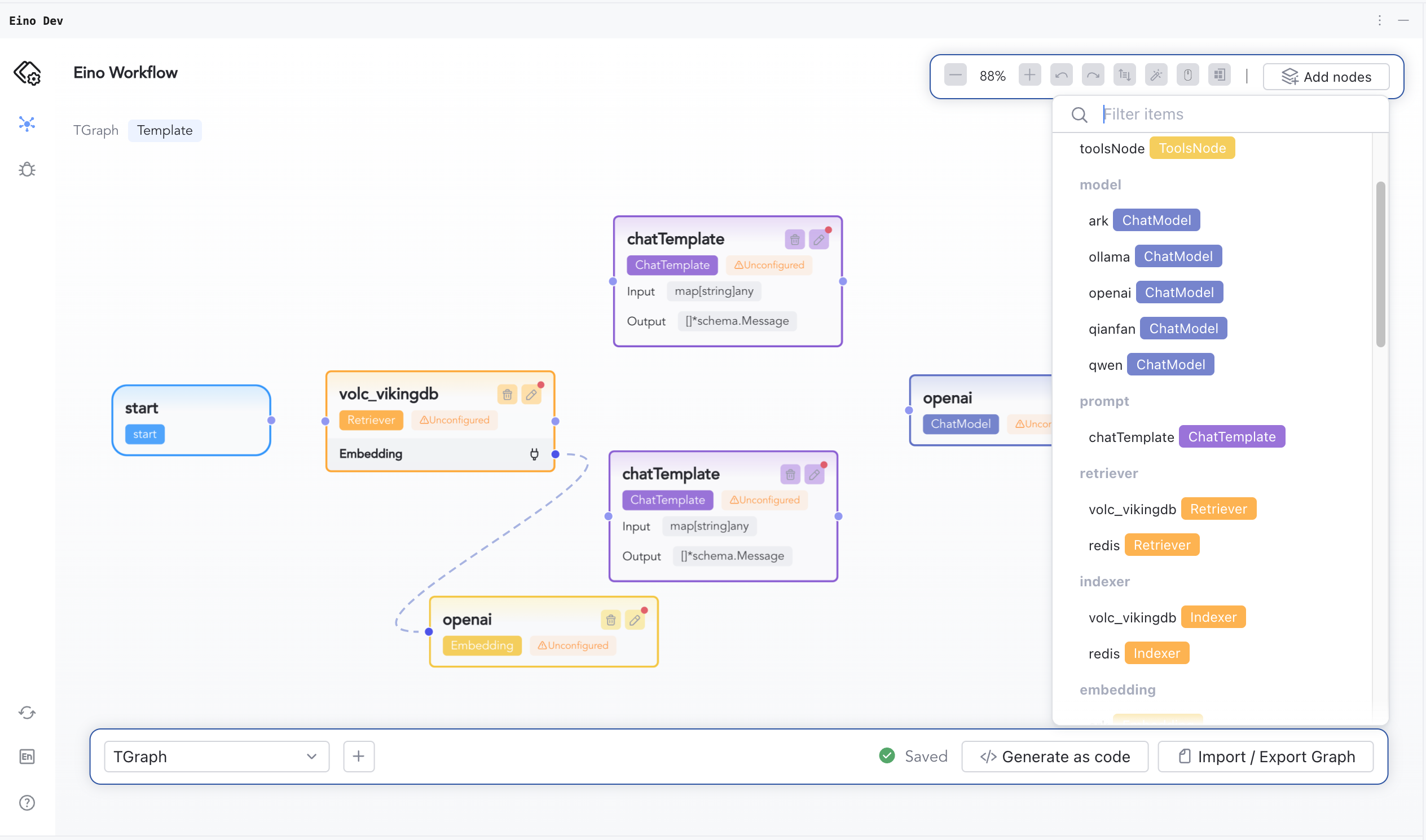

Use “AddNodes” to add nodes as needed.

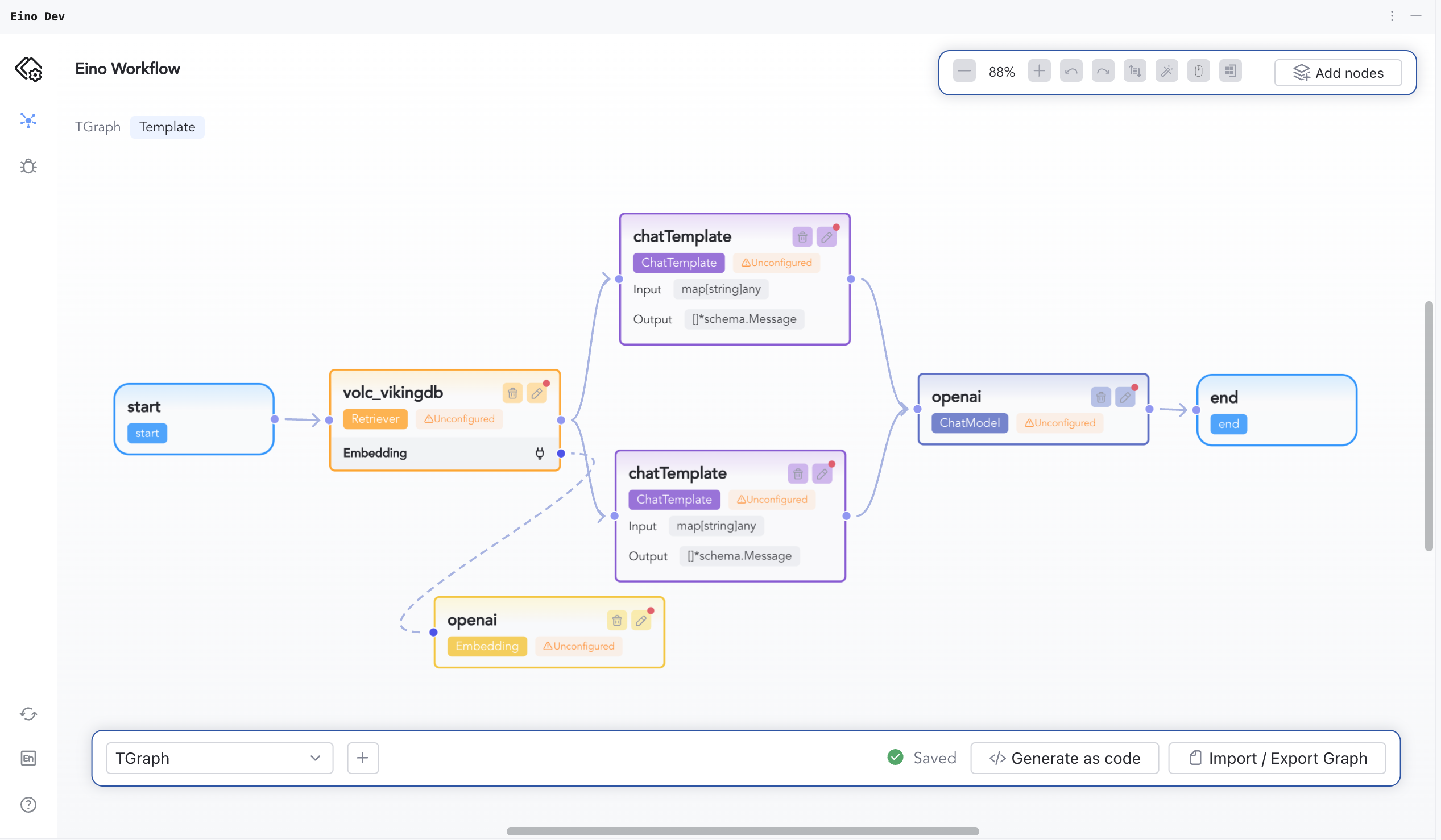

Connect nodes according to business logic.

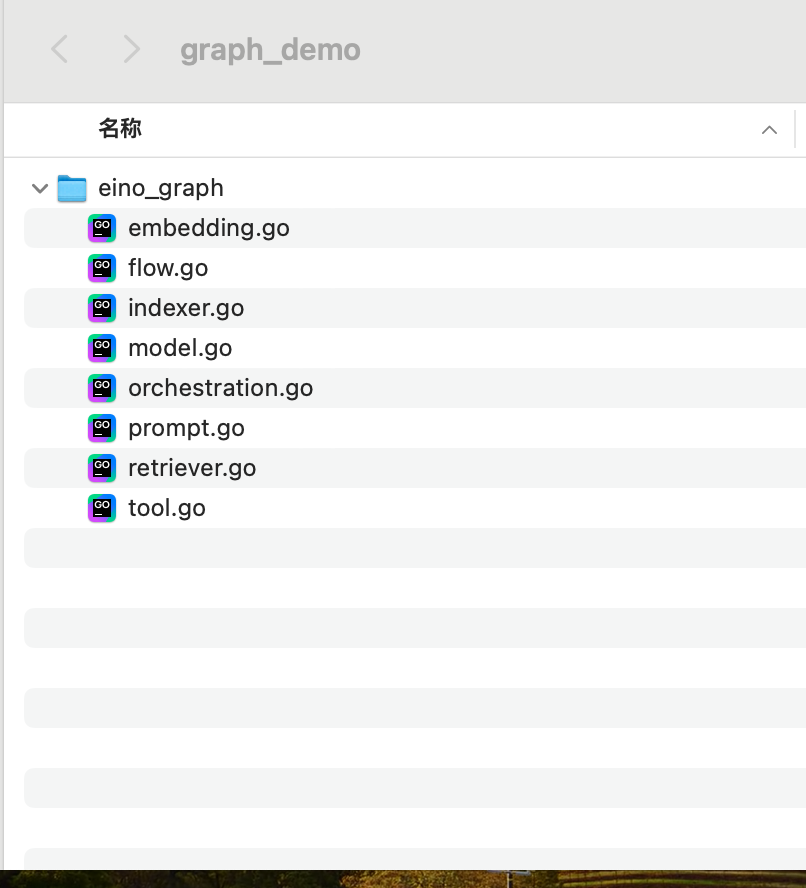

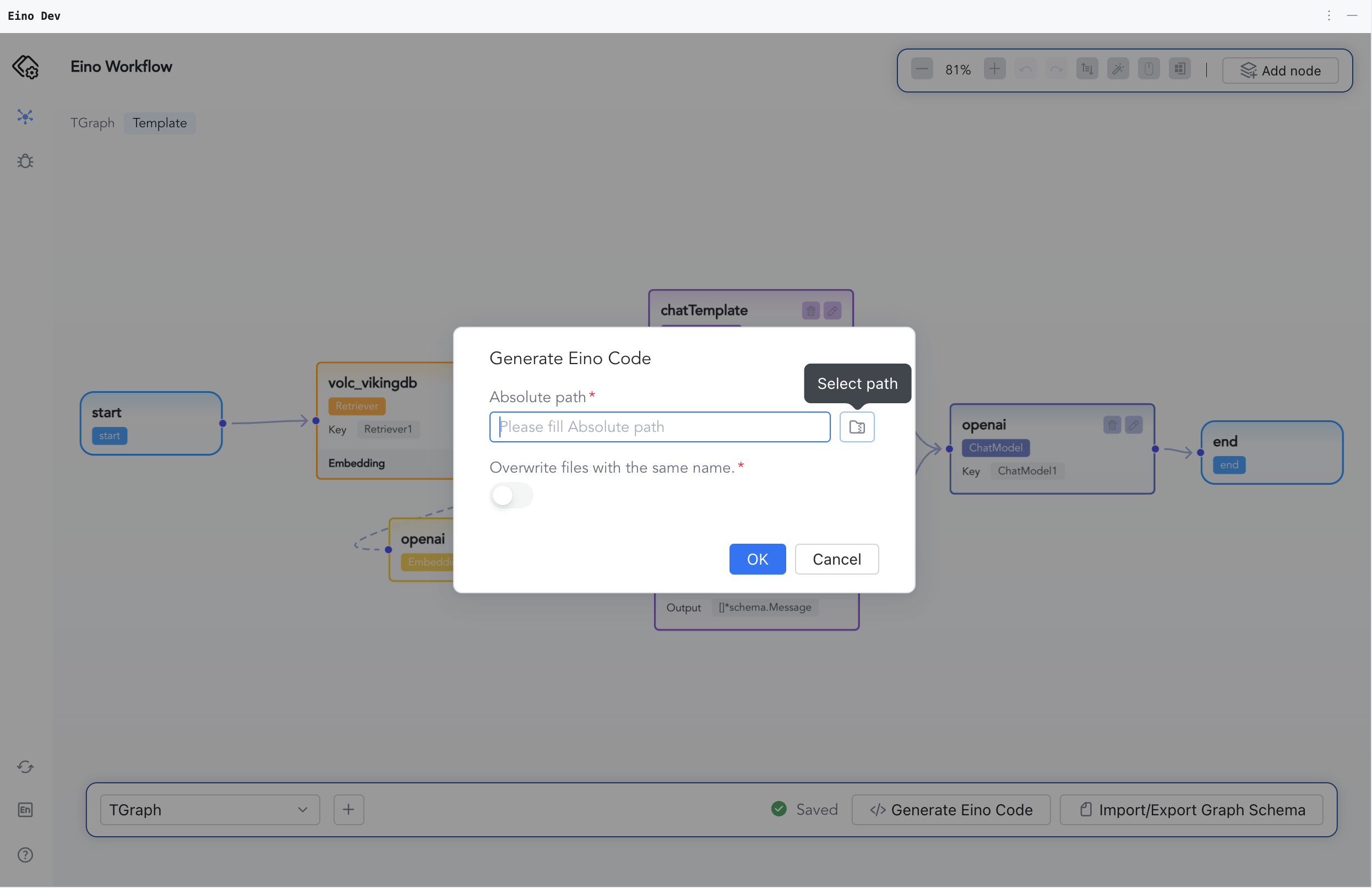

Click “Generate as code”, choose a folder, and save the generated Graph code.

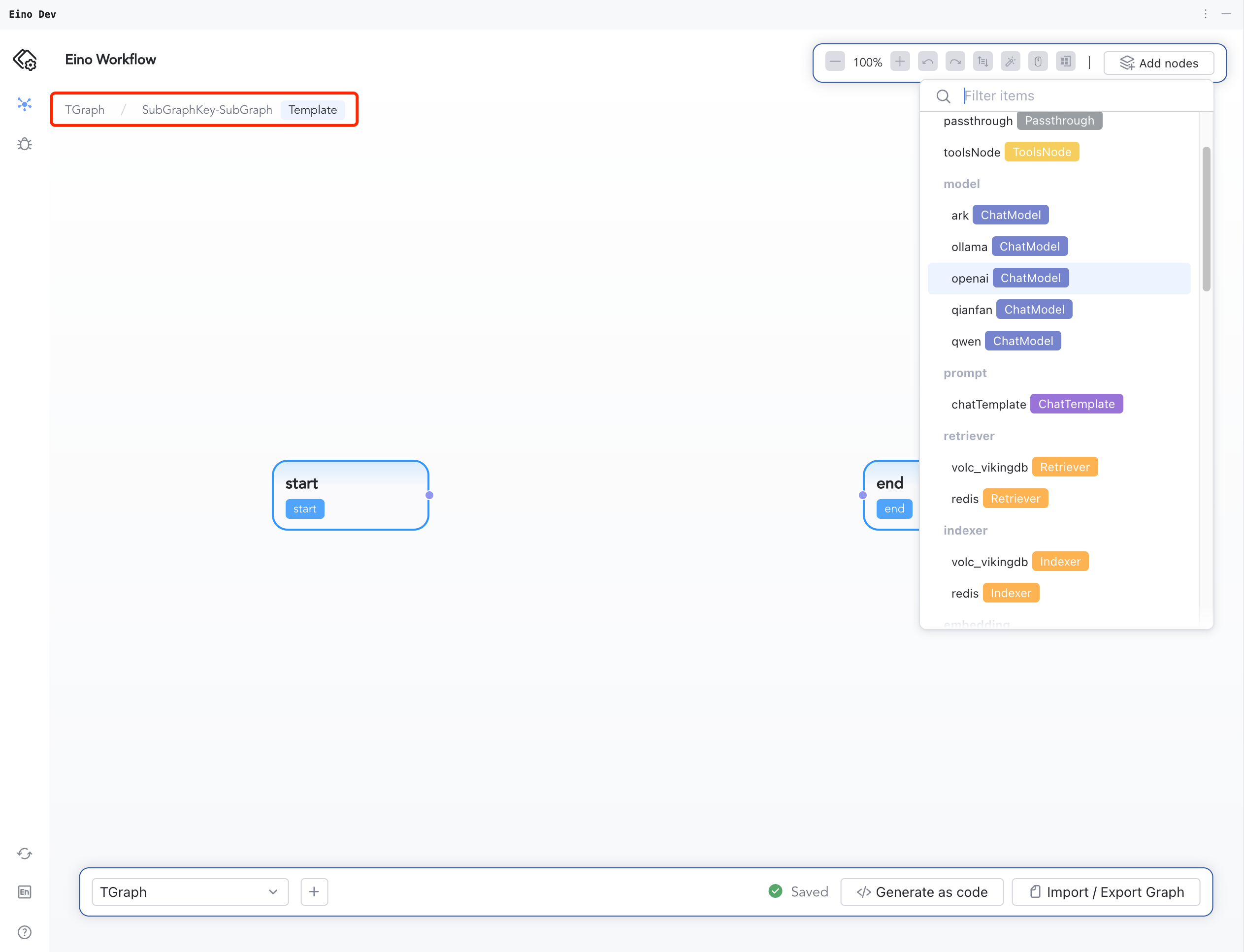

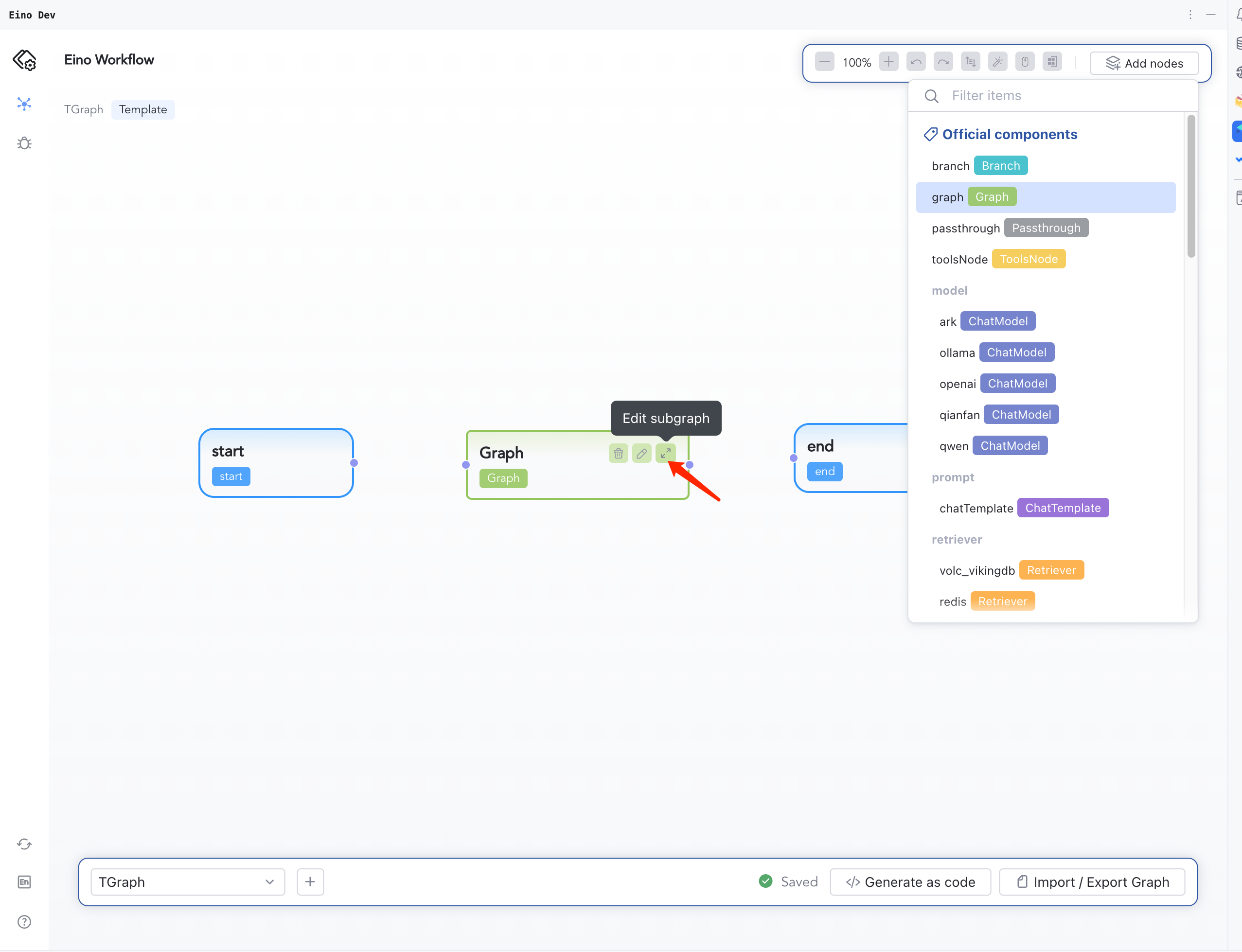

When adding a Graph component as a node, expand the nested Graph to configure its nodes; use the breadcrumb to return to the top-level after configuration.
